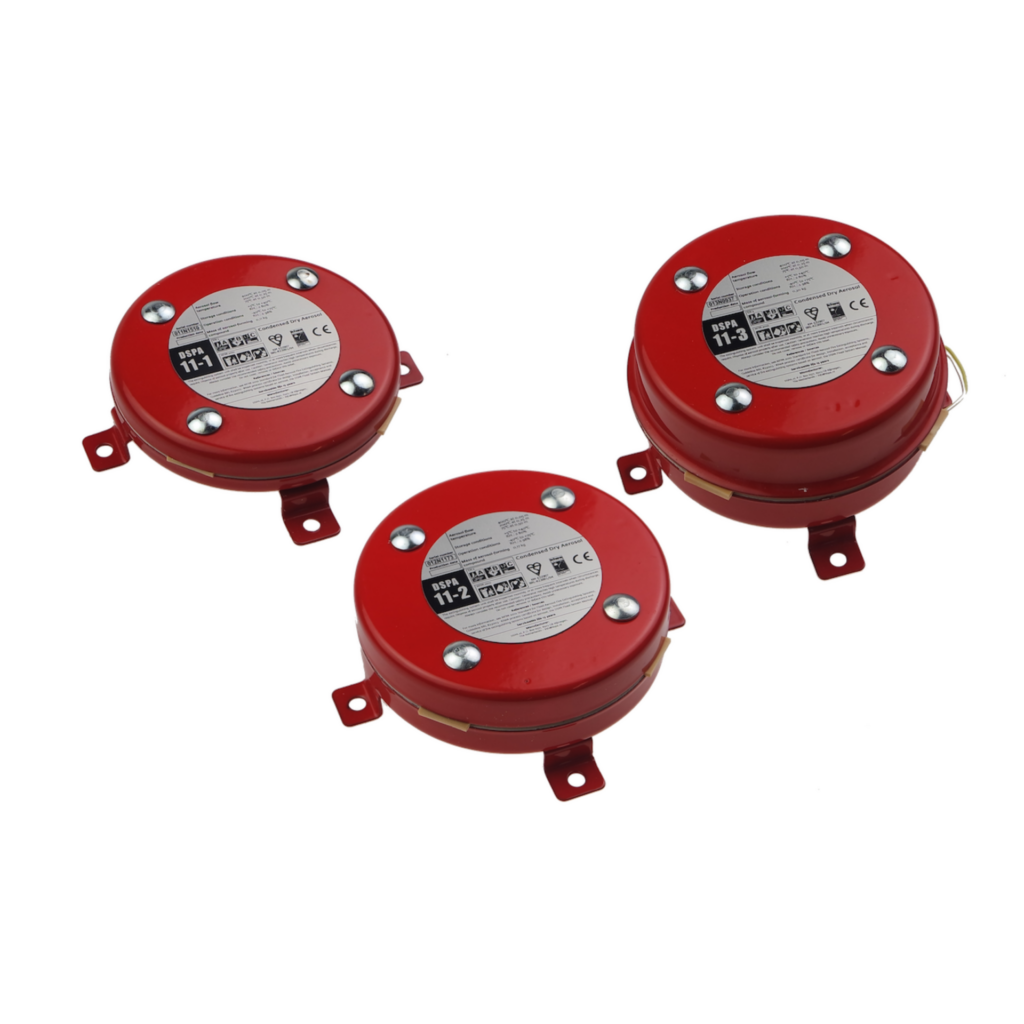

DSPA® 11 series
The 11 series models are highly effective as knockdown tools against fires. They’re non-pressurized and installed in a room or compartment. Once activated, an aerosol cloud is generated, expanding volumetrically, filling the room, and knocking down the flames.
Features
- Easy to install and maintain
- Cost-efficient
- Effective non-toxic fire suppressing agent
- Does not cause overpressure
- Does not deplete oxygen levels
- Harmless to both humans and animals
- Ecologically safe and environment-friendly (O.D.P.=0, G.W.P.=0)
- Significant New Alternatives Policy (SNAP) listing by the Environmental Protection Agency (EPA)
- CE-marked
- Tested as per EN 15276-1, NEN-ISO 15779, UL 2775 and BRL K23001
11-1 Specifications
- Model: 11-1
- Dimensions: 4.88” x 0.87”
- Total weight: 0.55 kg
- Compound weight: 0.11 kg
- Volume coverage: 1.07 m³
- Discharge time: 6-10 secs
- Activation, current: Built-in starter, 1.3A (e) or built-in thermocord (t)
- Operation conditions: -40°C to 75°C up to 95% RH
- Recommended for narrow compartments such as suspended ceilings, raised floors, cable ducts, transport vehicles, and switchgears, among others.
11-2 Specifications
- Model: 11-2
- Dimensions: 4.9” x 1.3”
- Total weight: 0.8 kg
- Compound weight: 0.17 kg
- Volume coverage: 1.66 m³
- Discharge time: 9-15 secs
- Activation, current: Built-in starter, 1.3A (e) or built-in thermocord (t)
- Operation conditions: -40°C to 75°C up to 95% RH
- Recommended for narrow compartments such as suspended ceilings, raised floors, cable ducts, transport vehicles, and switchgears, among others.
11-3 Specifications
- Model: 11-3
- Dimensions: 5.2” x 2.1”
- Total weight: 1.3 kg
- Compound weight: 0.3 kg
- Volume coverage: 2.92 m³
- Discharge time: 14-26 secs
- Activation, current: Built-in starter, 1.3A (e) or built-in thermocord (t)
- Operation conditions: -40°C to 75°C up to 95% RH
- Recommended for narrow compartments such as suspended ceilings, raised floors, cable ducts, transport vehicles, and switchgears, among others.
